Dual Shaft Planetary Stirring Vacuum Mixing Machine For Battery Slurry And Powders

Payment Terms : T/T,PayPal,L/C,Western Union

Place of Origin : China

MOQ : 1 Set

After-sales Service : 24/7 Technical Support

Price : USD 1950 /Set

Packaging Details : Plywood Case

Rated power : 200W

vacuum degree : -0.08Mpa

Brand Name : ACEY

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Warranty : 1 Year Warranty With Lifetime Support

Model Number : ACEY-PVM-250ML

Power supply voltage : AC220V

Certification : CE

Stirring speed : MAX600 rpm

Contact Now

Dual Shaft Planetary Stirring Vacuum Mixing Machine
Advanced vacuum mixing and dispersion equipment specifically designed for battery slurry and powder materials. Ideal for positive and negative electrode slurry mixing processes, as well as various ceramic and powder material mixing in battery experimentation.
Key Advantages
Vacuum-state mixing completely eliminates bubbles, enhancing material filling density and model compactness for superior results.
Product Features
  • Integrated vacuum system effectively eliminates mixing process bubbles
  • Dual-shaft planetary stirring paddles with optional single-shaft blade configurations
  • Forward and reverse stirring function for high-viscosity slurry processing
  • Stepping motor with PLC frequency speed control for precise operation
  • Multi-stage speed programming with customizable timing for each stage
  • Safety-engineered bracket design for secure vacuum mixing operations
  • Modern geometric design with sleek, professional appearance
Technical Specifications
Power Supply Voltage AC220V
Rated Power 200W
Stirring Speed MAX 600 rpm
Speed Regulation Function Three-stage speed, configurable
Vacuum System Built-in vacuum pump, vacuum degree -0.08Mpa, pressure maintained for 2H without obvious drop
Stirrer Configuration Standard twin-shaft screw agitator; other types designed according to the tank body
Stirring Tank Volume 150ml～500ml vacuum stirring tank
Mixing Time 0～600min, configurable
Overall Dimensions 335mm * 325mm * 575mm (L*W*H)
Overall Weight 35kg

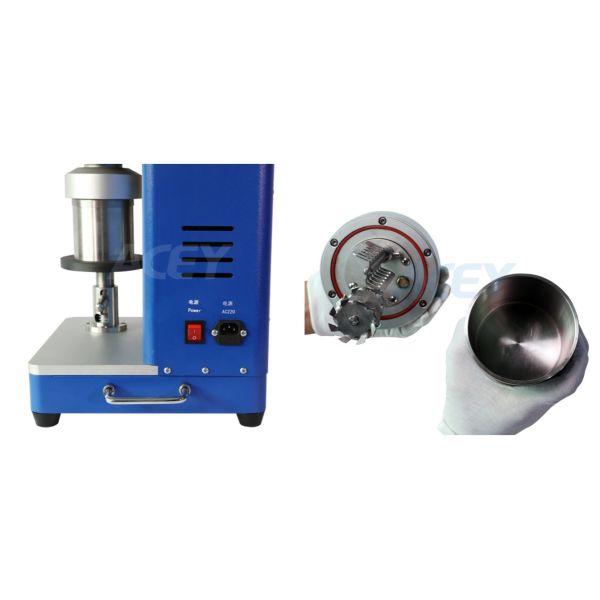

Product Display
Dual Shaft Planetary Stirring Vacuum Mixing Machine For Battery Slurry And Powders Dual Shaft Planetary Stirring Vacuum Mixing Machine For Battery Slurry And Powders
